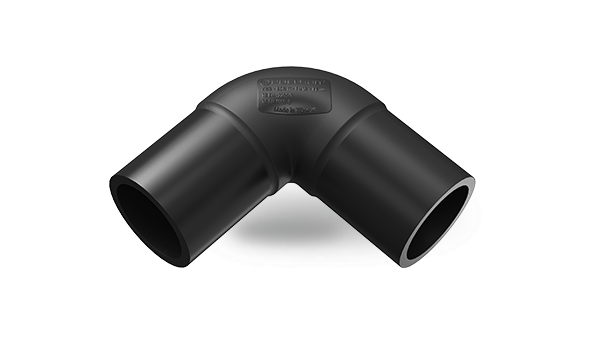

Spigot Elbow 90°
Spigot elbow 90° made of PE 100 (SDR 11) for butt fusion welding of HDPE pipes, nominal sizes d20 to d160 mm.
Description
The spigot elbow 90° is used to change the direction of HDPE pressure pipelines by 90°. It is manufactured as a spigot end fitting from PE 100 with standard dimension ratio SDR 11 and is joined to the pipe by heated-tool butt fusion or by means of electrofusion couplers. Available in nominal sizes 20 to 160 mm, all rated for an operating pressure of PN 16.
Features
- Material PE 100
- Standard dimension ratio SDR 11
- 90° change of direction
- Spigot design (welding end)
- Nominal sizes d20 – d160 mm
- Pressure rating PN 16

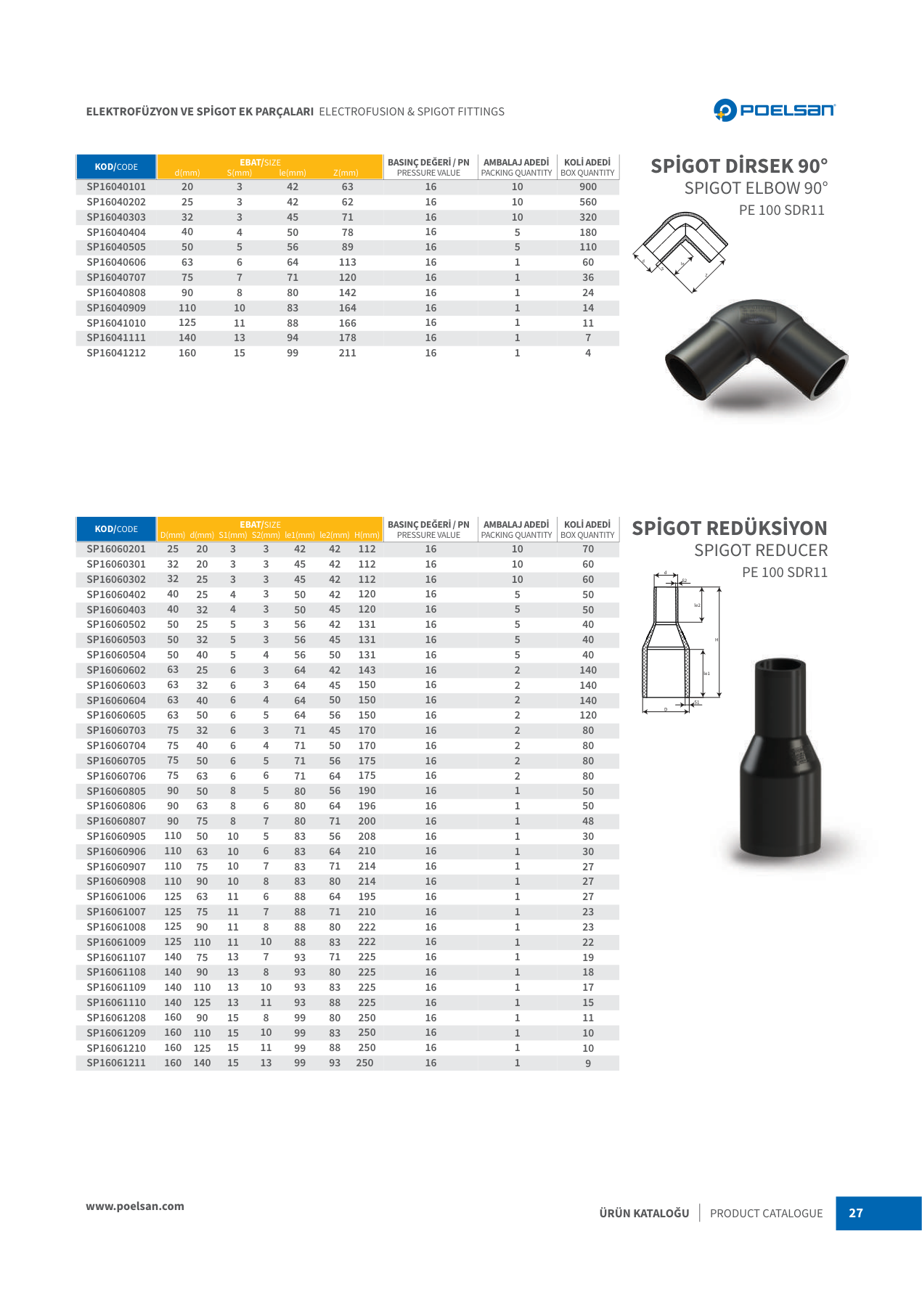

Dimensions & item numbers
| Item no. | d (mm) | S (mm) | le (mm) | Z (mm) | Pressure rating (PN) | Packing unit | Box qty |
|---|---|---|---|---|---|---|---|
| SP16040101 | 20 | 3 | 42 | 63 | 16 | 10 | 900 |
| SP16040202 | 25 | 3 | 42 | 62 | 16 | 10 | 560 |
| SP16040303 | 32 | 3 | 45 | 71 | 16 | 10 | 320 |
| SP16040404 | 40 | 4 | 50 | 78 | 16 | 5 | 180 |
| SP16040505 | 50 | 5 | 56 | 89 | 16 | 5 | 110 |
| SP16040606 | 63 | 6 | 64 | 113 | 16 | 1 | 60 |
| SP16040707 | 75 | 7 | 71 | 120 | 16 | 1 | 36 |
| SP16040808 | 90 | 8 | 80 | 142 | 16 | 1 | 24 |
| SP16040909 | 110 | 10 | 83 | 164 | 16 | 1 | 14 |
| SP16041010 | 125 | 11 | 88 | 166 | 16 | 1 | 11 |
| SP16041111 | 140 | 13 | 94 | 178 | 16 | 1 | 7 |
| SP16041212 | 160 | 15 | 99 | 211 | 16 | 1 | 4 |
Additional information
| Material | PE 100 |
|---|---|
| Druckstufe | PN16 |
| Maßverhältnis | SDR 11 |
| Nennweite | d20 – d160 mm |
