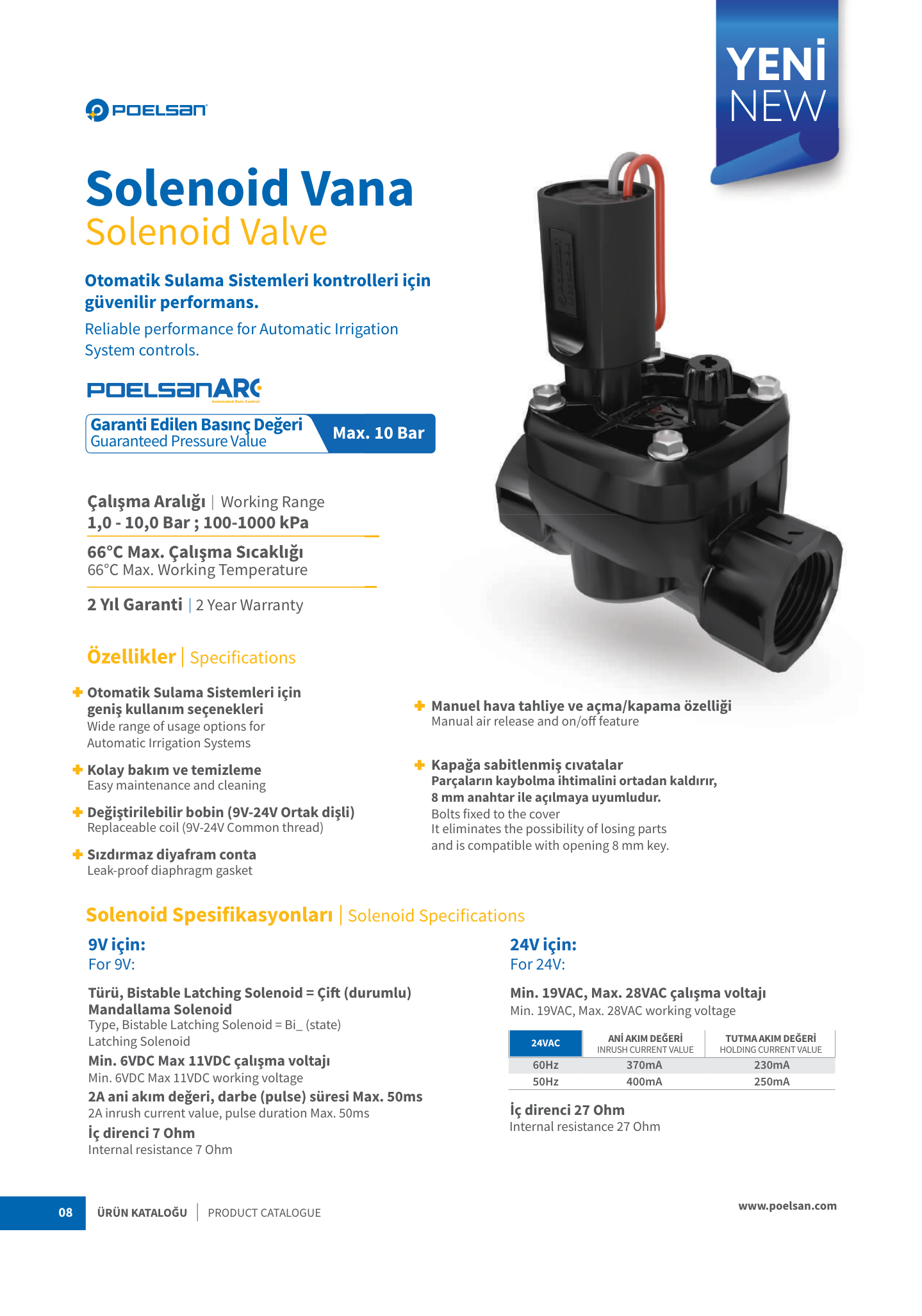

Solenoid valve 2″ (SV201)
Solenoid valve 2″ (SV201) for automatic irrigation, flow-adjustable, with 9V or 24V coil. Flow 5–34 m³/h, max. 10 bar.
Description

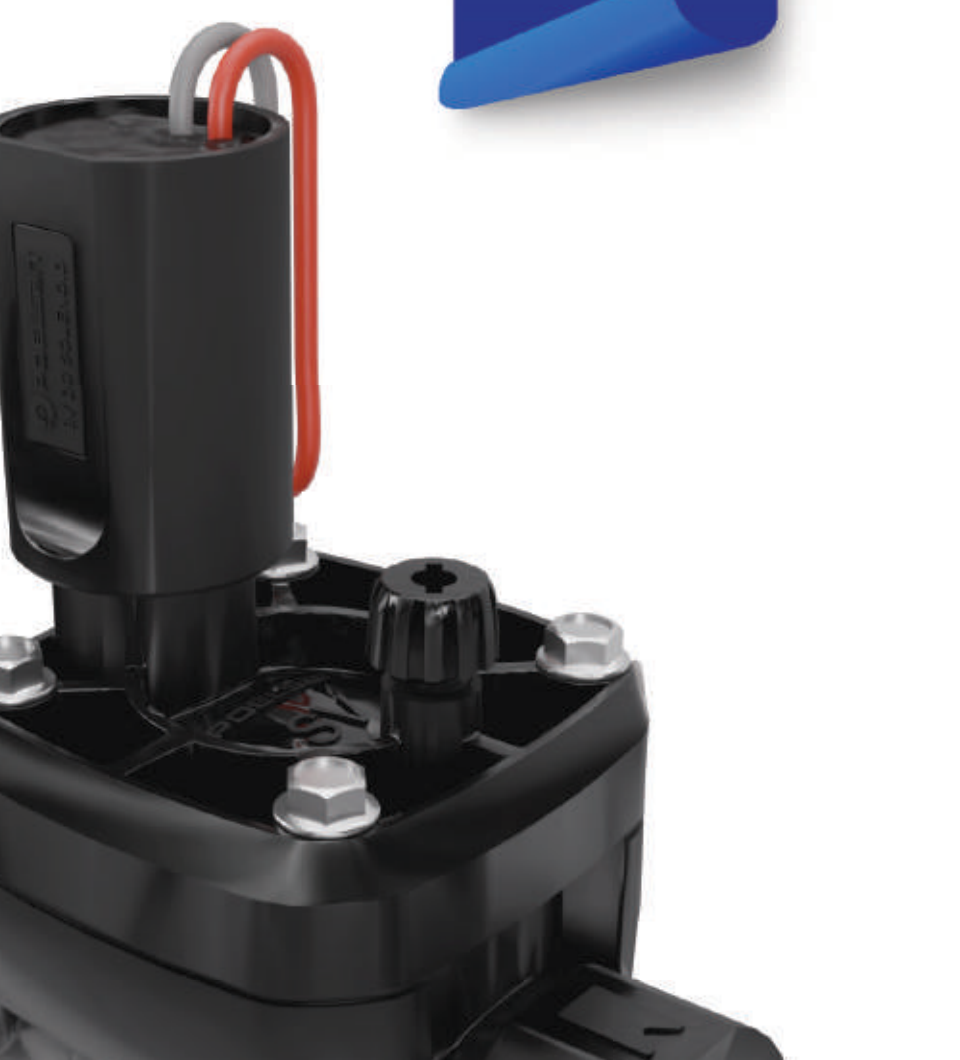

The Poelsan solenoid valve 2″ (SV201) from the PoelsanARC series reliably controls automatic irrigation systems. The 2″ version is flow-adjustable and is available with an interchangeable 9V or 24V solenoid coil. A manual bleed and on/off function simplifies commissioning; the captive lid screws prevent loss of parts and open with an 8 mm key.
Features
- Size 2″, flow range 5–34 m³/h
- Flow-adjustable
- Interchangeable solenoid coil (9V / 24V, common thread)
- Guaranteed pressure: max. 10 bar (operating range 1.0–10.0 bar)
- Max. operating temperature: 60 °C
- Manual bleed and on/off function
- 2-year warranty
Dimensions & item numbers
| Item no. | Coil | Type | Size | L×W×H (mm) | Flow range | PN | Box qty |
|---|---|---|---|---|---|---|---|
| SV201B | 9V | adjustable | 2″ | 130×164×218 | 5–34 m³/h | 10 | 8 |
| SV201E | 24V | adjustable | 2″ | 130×164×218 | 5–34 m³/h | 10 | 8 |
Electrical data
| Voltage | Operating voltage | Inrush current | Holding current | Internal resistance |
|---|---|---|---|---|
| 9V (latching) | 6–11 V DC | pulse max. 50 ms | – | 7 Ω |
| 24 V AC (60 Hz) | 19–28 V AC | 370 mA | 230 mA | 27 Ω |
| 24 V AC (50 Hz) | 19–28 V AC | 400 mA | 250 mA | 27 Ω |
Additional information
| Druckstufe | PN10 |
|---|---|
| Einsatzbereich | Bewässerung |
| Material | Kunststoff |
| Anschlussgröße | 2" |
| Spannung | 9V / 24V |
