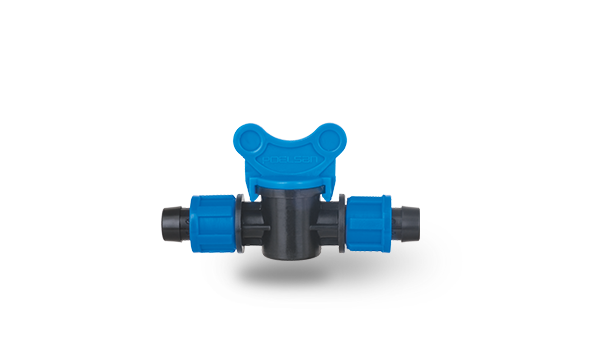

Name: Mini Valve DN8 – Dripline Connection
Brand: Poelsan

Description

Mini shut-off valve of the DN 8 series with an 8 mm water passage for drip irrigation. Made of impact-resistant polypropylene, with O-ring sealing and pore-free inner surfaces. The valve allows individual drip lines to be opened and closed easily directly on the line. Pressure rating PN 4. This version has a push-in connection for 16 or 20 mm dripline on connection side A.

Features

Water passage Ø 8 mm
High-quality impact-resistant polypropylene (PP)
Minimal pressure loss, wide flow range
Easy opening/closing to control individual irrigation lines
UV-opaque – prevents algae and bacteria formation
Sealing via rubber O-ring, leak-tight even under pressure
Homogeneous, pore-free inner surfaces
Food-neutral – does not alter the taste or odor of the water
Pressure rating PN 4
Certified to TS EN ISO 9261

Dimensions & item numbers

Item no.	Connection B (type)	Size	PN	Packing unit (pcs)	Box qty (pcs)
118922KLN 04050850	Dripline connection	16 x 16	4	50	550
118924KLN 04050851	Dripline connection	16 x 20	4	50	500
118944KLN 04050852	Dripline connection	20 x 20	4	50	450
118422KLN 04050808	Grommet seal	16 x 16	4	50	600
118442KLN 04050809	Grommet seal	20 x 16	4	50	550
118444KLN 04050810	Grommet seal	20 x 20	4	50	500
118423KLN 04050811	Grommet seal (Ø18 mm hole)	16 x 16	4	50	600
118443KLN 04050812	Grommet seal (Ø18 mm hole)	20 x 16	4	50	550
118462KLN 04050813	Offtake without gasket	16	4	50	550
118482KLN 04050814	Offtake without gasket	20	4	50	500
119322KLN 04050881	Drip tape connection	16 x 17	4	50	550
119324KLN 04050882	Drip tape connection	16 x 22	4	50	450
119342KLN 04050883	Drip tape connection	20 x 17	4	50	500
119344KLN 04050884	Drip tape connection	20 x 22	4	50	400

Additional information

Druckstufe	PN4
Material	PP
Einsatzbereich	Tropfbewässerung
Norm	TS EN ISO 9261
Anschlussart	Steckanschluss für Tropfrohr
Nennweite (Wasserdurchgang)	DN 8
Anschluss A	Tropfrohranschluss 16/20 mm
