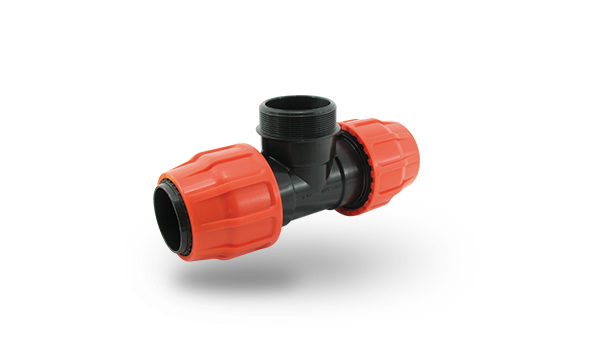

Layflat Tee with Male Thread Outlet
Layflat tee with two compression connections and central male-threaded outlet (d x G x d).
Description
Layflat tee made of high-quality polypropylene with two layflat compression connections and one male-threaded outlet (BSP) in the middle. Rubber O-ring seal, UV-stabilized. Pressure ratings from PN10 to PN4 depending on dimension.
Features
- High-quality, impact-resistant polypropylene
- Rubber O-ring for high tightness under pressure
- UV-stabilized, homogeneous and pore-free surface
- Guaranteed pressure ratings: 2"–2½" PN10, 3"–5" PN6, 6" PN4

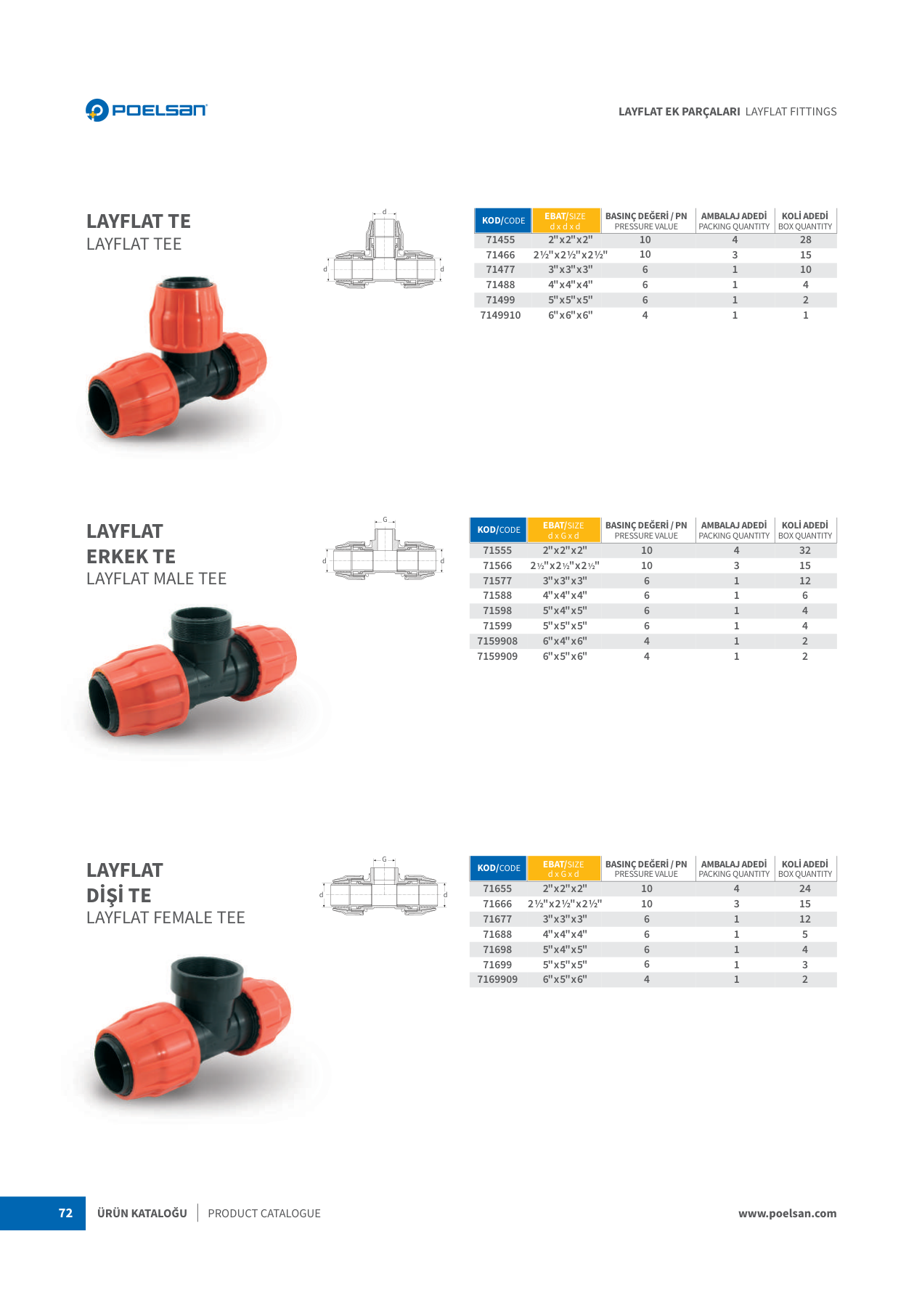

Dimensions & item numbers
| Item no. | Size (d x G x d) | Pressure rating (PN) | Packing unit | Box qty |
|---|---|---|---|---|
| 71555KLN 50310340 | 2" x 2" x 2" | 10 | 4 | 32 |
| 71566KLN 50310341 | 2½" x 2½" x 2½" | 10 | 3 | 15 |
| 71577KLN 50310342 | 3" x 3" x 3" | 6 | 1 | 12 |
| 71588KLN 50310343 | 4" x 4" x 4" | 6 | 1 | 6 |
| 71598KLN 50310344 | 5" x 4" x 5" | 6 | 1 | 4 |
| 71599KLN 50310345 | 5" x 5" x 5" | 6 | 1 | 4 |
| 7159908KLN 50310346 | 6" x 4" x 6" | 4 | 1 | 2 |
| 7159909KLN 50310347 | 6" x 5" x 6" | 4 | 1 | 2 |
Additional information
| Material | PP |
|---|---|
| Druckstufe | PN10, PN4, PN6 |
| Anschlussart | Außengewinde, Layflat-Klemmanschluss |
| Einsatzbereich | Bewässerung |
| Anschlussgröße | 2"–6" |
| Gewindenorm | BSP |
