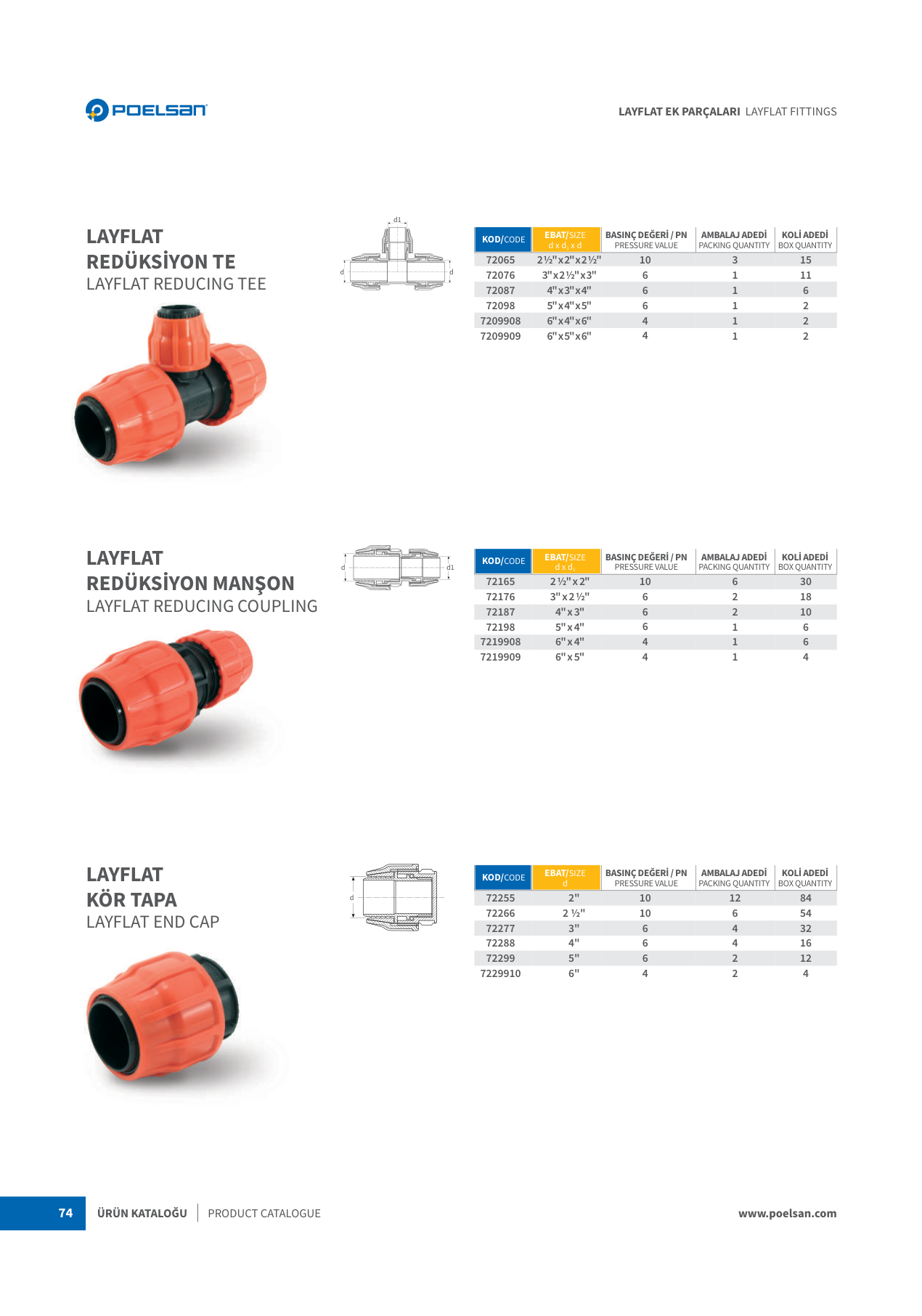

Layflat Reducing Tee
Tee with reduced central layflat outlet (d x d1 x d), sizes 2½” to 6″.
Description
Layflat reducing tee made of high-quality polypropylene with three layflat compression connections, central outlet reduced. Rubber O-ring seal, UV-stabilized. Pressure ratings from PN10 to PN4 depending on dimension.
Features
- High-quality, impact-resistant polypropylene
- Rubber O-ring for high tightness under pressure
- UV-stabilized, homogeneous and pore-free surface
- Guaranteed pressure ratings: 2"–2½" PN10, 3"–5" PN6, 6" PN4
Dimensions & item numbers
| Item no. | Size (d x d1 x d) | Pressure rating (PN) | Packing unit | Box qty |
|---|---|---|---|---|
| 72065KLN 50310390 | 2½" x 2" x 2½" | 10 | 3 | 15 |
| 72076KLN 50310391 | 3" x 2½" x 3" | 6 | 1 | 11 |
| 72087KLN 50310392 | 4" x 3" x 4" | 6 | 1 | 6 |
| 72098KLN 50310393 | 5" x 4" x 5" | 6 | 1 | 2 |
| 7209908KLN 50310394 | 6" x 4" x 6" | 4 | 1 | 2 |
| 7209909KLN 50310395 | 6" x 5" x 6" | 4 | 1 | 2 |
Additional information
| Material | PP |
|---|---|
| Druckstufe | PN10, PN4, PN6 |
| Anschlussart | Layflat-Klemmanschluss |
| Einsatzbereich | Bewässerung |
| Anschlussgröße | 2"–6" |
