Electrofusion Reducer

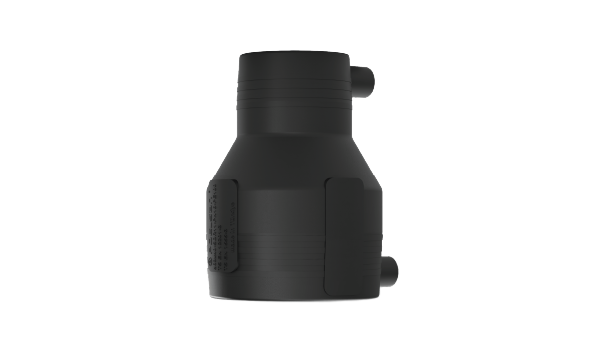

Electrofusion reducer (EF Reducer) made of PE 100 SDR11 for connecting PE pipes of different diameters by electrofusion.

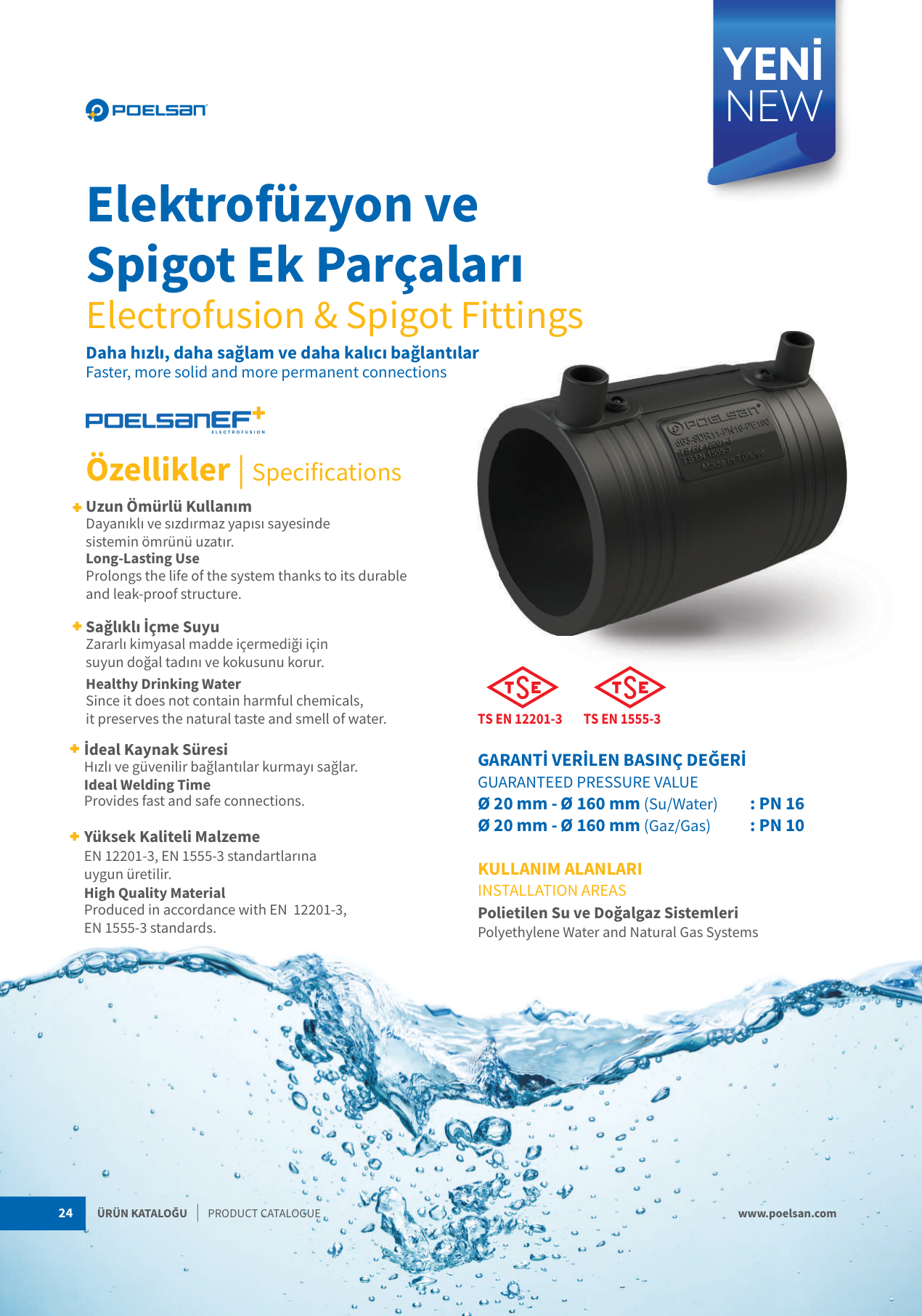

Description
The Poelsan EF electrofusion reducer connects two PE pipes of different diameters. The joint is made by electrofusion via integrated heating coils. Material PE 100 in the SDR 11 series, suitable for drinking water and natural gas networks.
Features
- Material PE 100, SDR 11
- Diameter reduction between two pipes
- Joined by electrofusion
- Pressure rating PN 16
- Suitable for drinking water and natural gas applications

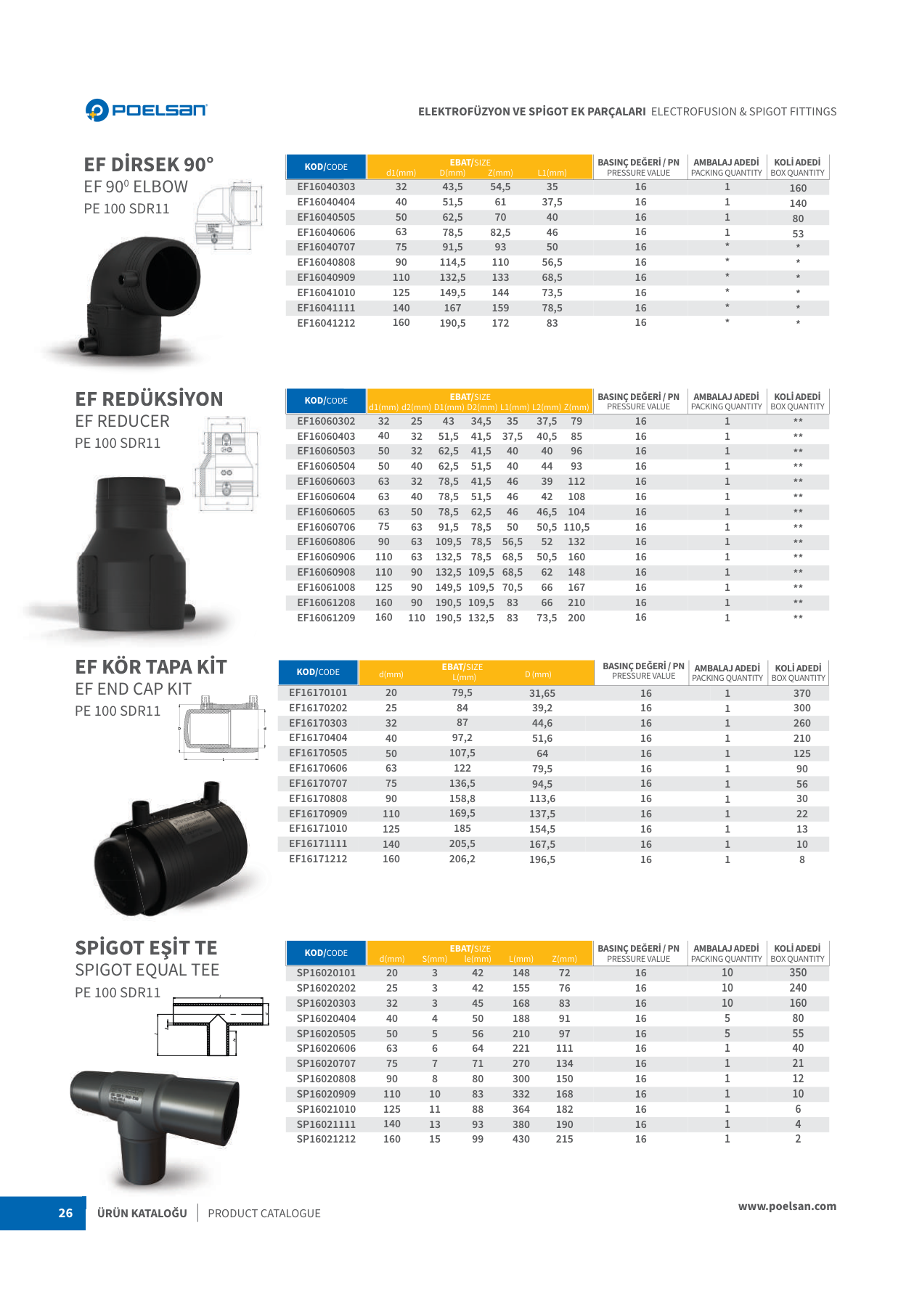

Dimensions & item numbers
| Item no. | d1 (mm) | d2 (mm) | D1 (mm) | D2 (mm) | L1 (mm) | L2 (mm) | Z (mm) | PN | Packing unit | Box qty |
|---|---|---|---|---|---|---|---|---|---|---|
| EF16060302 | 32 | 25 | 43 | 34.5 | 35 | 37.5 | 79 | 16 | 1 | ** |
| EF16060403 | 40 | 32 | 51.5 | 41.5 | 37.5 | 40.5 | 85 | 16 | 1 | ** |
| EF16060503 | 50 | 32 | 62.5 | 41.5 | 40 | 40 | 96 | 16 | 1 | ** |
| EF16060504 | 50 | 40 | 62.5 | 51.5 | 40 | 44 | 93 | 16 | 1 | ** |
| EF16060603 | 63 | 32 | 78.5 | 41.5 | 46 | 39 | 112 | 16 | 1 | ** |
| EF16060604 | 63 | 40 | 78.5 | 51.5 | 46 | 42 | 108 | 16 | 1 | ** |
| EF16060605 | 63 | 50 | 78.5 | 62.5 | 46 | 46.5 | 104 | 16 | 1 | ** |
| EF16060706 | 75 | 63 | 91.5 | 78.5 | 50 | 50.5 | 110.5 | 16 | 1 | ** |
| EF16060806 | 90 | 63 | 109.5 | 78.5 | 56.5 | 52 | 132 | 16 | 1 | ** |
| EF16060906 | 110 | 63 | 132.5 | 78.5 | 68.5 | 50.5 | 160 | 16 | 1 | ** |
| EF16060908 | 110 | 90 | 132.5 | 109.5 | 68.5 | 62 | 148 | 16 | 1 | ** |
| EF16061008 | 125 | 90 | 149.5 | 109.5 | 70.5 | 66 | 167 | 16 | 1 | ** |
| EF16061208 | 160 | 90 | 190.5 | 109.5 | 83 | 66 | 210 | 16 | 1 | ** |
| EF16061209 | 160 | 110 | 190.5 | 132.5 | 83 | 73.5 | 200 | 16 | 1 | ** |
Additional information
| Material | PE 100 |
|---|---|
| Druckstufe | PN16 |
| Anschlussart | Elektrofusion |
| Norm | EN 12201-3, EN 1555-3, TSE 12201-3, TSE 1555-3 |
| Einsatzbereich | Erdgas, Trinkwasser |
| Dimension | 32–160 mm |
| SDR | SDR 11 |
| Verbindungstechnik | Heizwendelschweißen |
