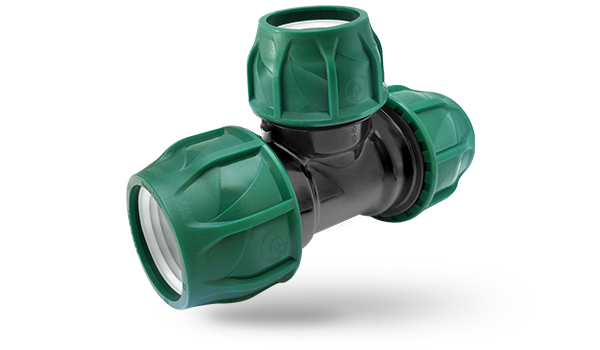

Name: Compression Fitting Reducing Tee – Green Series
Brand: Poelsan

Description

Reducing tee from the Poelsan Green Series. Connects two PE pipe ends of the same dimension by compression connection and provides a central outlet in a different dimension. Made of high-quality polypropylene, O-ring made of genuine rubber, UV-stabilized. Product according to ISO 17885 (TSE-certified). Guaranteed pressure rating: Ø20–Ø63 mm PN10, Ø75–Ø110 mm PN6.

Features

High-quality polypropylene (PP)
O-ring made of genuine rubber – tight even at high pressure
UV-stabilized for outdoor use
Product according to ISO 17885 (TSE)
Guaranteed pressure rating: Ø20–63 PN10, Ø75–110 PN6

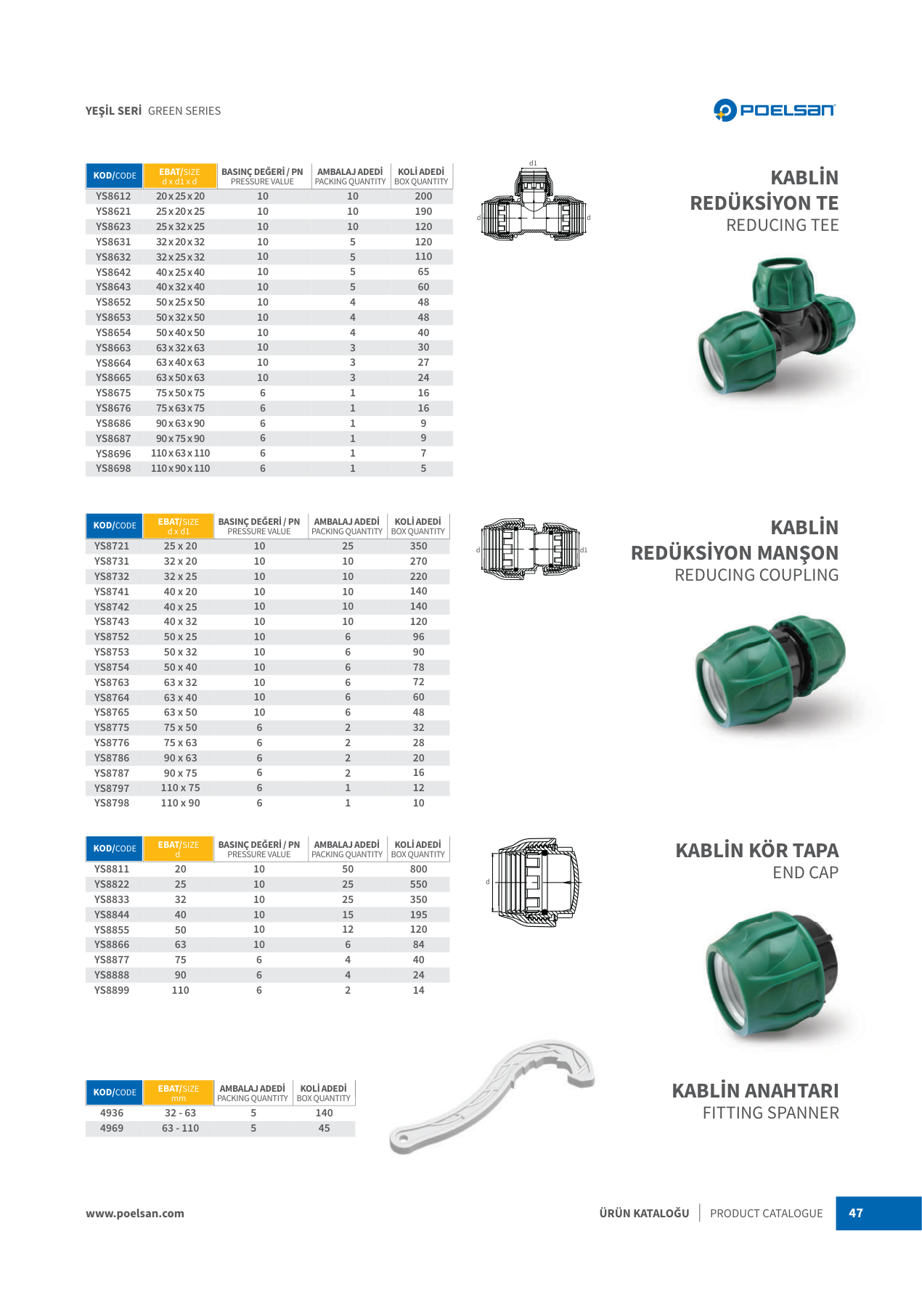

Dimensions & item numbers

Item no.	Size (d x d1 x d)	PN	Packing unit (pcs)	Box qty (pcs)
YS8612KLN 04044262	20 x 25 x 20	10	10	200
YS8621KLN 04044246	25 x 20 x 25	10	10	190
YS8623KLN 04044263	25 x 32 x 25	10	10	120
YS8631KLN 04044247	32 x 20 x 32	10	5	120
YS8632KLN 04044248	32 x 25 x 32	10	5	110
YS8642KLN 04044249	40 x 25 x 40	10	5	65
YS8643KLN 04044250	40 x 32 x 40	10	5	60
YS8652KLN 04044251	50 x 25 x 50	10	4	48
YS8653KLN 04044252	50 x 32 x 50	10	4	48
YS8654KLN 04044253	50 x 40 x 50	10	4	40
YS8663KLN 04044255	63 x 32 x 63	10	3	30
YS8664KLN 04044256	63 x 40 x 63	10	3	27
YS8665KLN 04044257	63 x 50 x 63	10	3	24
YS8675KLN 04500015	75 x 50 x 75	6	1	16
YS8676KLN 04044258	75 x 63 x 75	6	1	16
YS8686KLN 04044259	90 x 63 x 90	6	1	9
YS8687KLN 04044260	90 x 75 x 90	6	1	9
YS8696KLN 04050016	110 x 63 x 110	6	1	7
YS8698KLN 04044261	110 x 90 x 110	6	1	5
