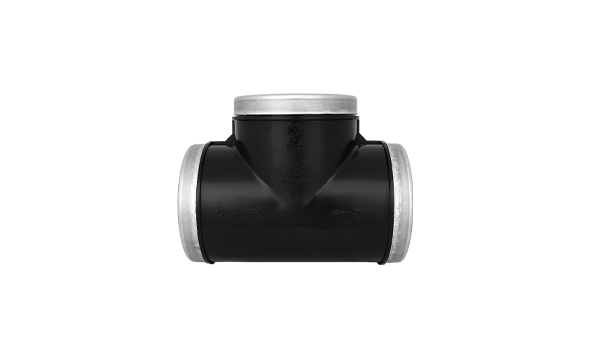

Threaded Tee Female/Female/Female with Metal Ring
Reinforced tee with three female threads and metal reinforcing ring, 2″ and 3″, PN10.
Description
Threaded tee with three female-threaded connections and a metal reinforcing ring (Metal Yüzüklü / reinforcing ring), made of high-quality polypropylene. The metal ring reinforces the threaded connections for higher tightening torques and permanently tight sealing. BSP thread, guaranteed pressure rating PN10.
Features
- High-quality, impact-resistant polypropylene
- Metal reinforcing ring on the threaded connections
- BSP thread
- Guaranteed pressure rating PN10
- Sealing with Teflon tape

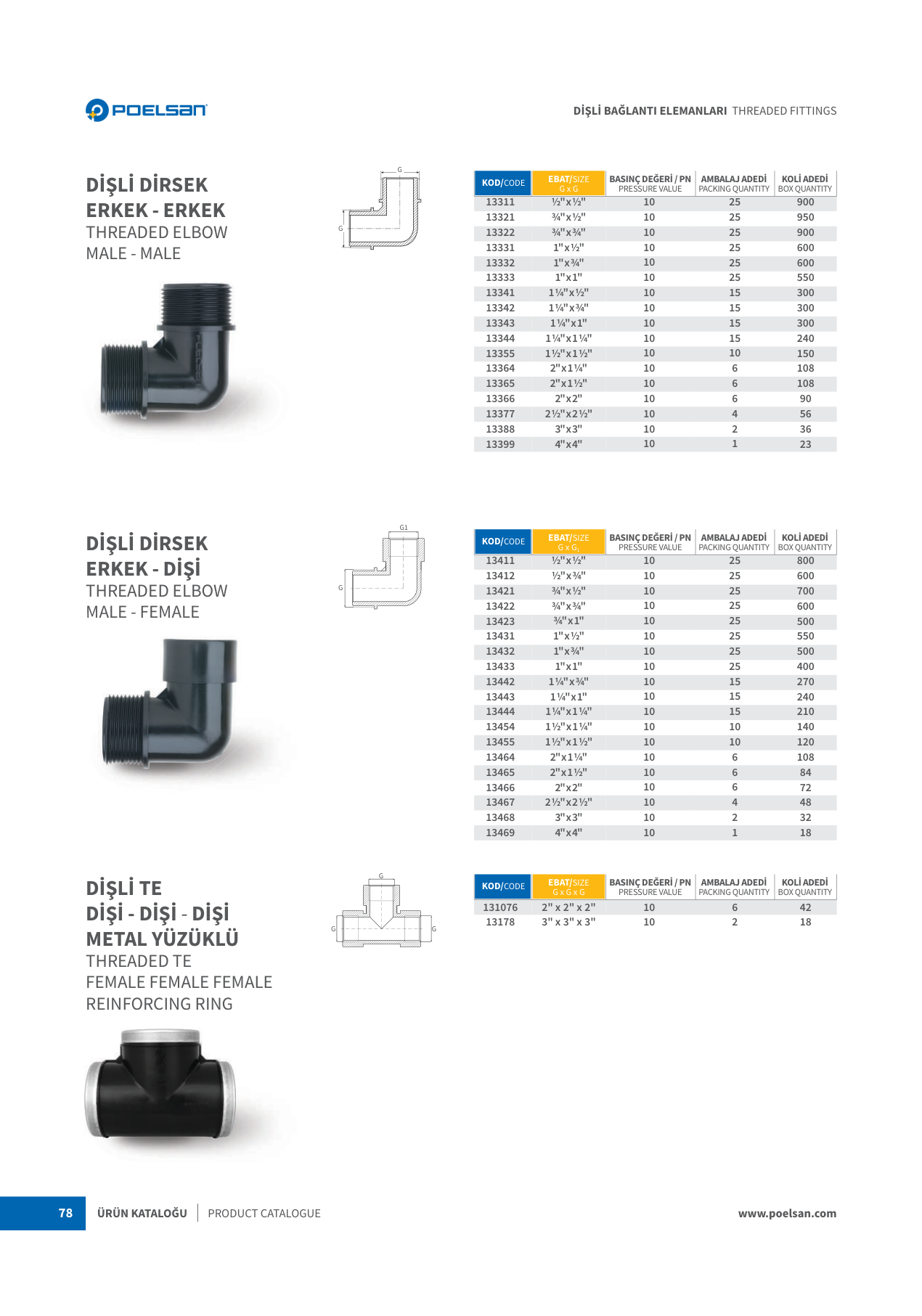

Dimensions & item numbers
| Item no. | Size (G x G x G) | Pressure rating (PN) | Packing unit | Box qty |
|---|---|---|---|---|
| 131076 | 2" x 2" x 2" | 10 | 6 | 42 |
| 13178 | 3" x 3" x 3" | 10 | 2 | 18 |
Additional information
| Material | PP |
|---|---|
| Druckstufe | PN10 |
| Anschlussart | Innengewinde |
| Einsatzbereich | Bewässerung |
| Anschlussgröße | 2", 3" |
| Gewindenorm | BSP |
| Besonderheit | Metall-Verstärkungsring |
