Threaded Reducer Male/Female (Reducing Bushing)
Reducing bushing (Bushing) with male thread to smaller female thread, ½”x¼” to 4″x3″, PN10.
Description

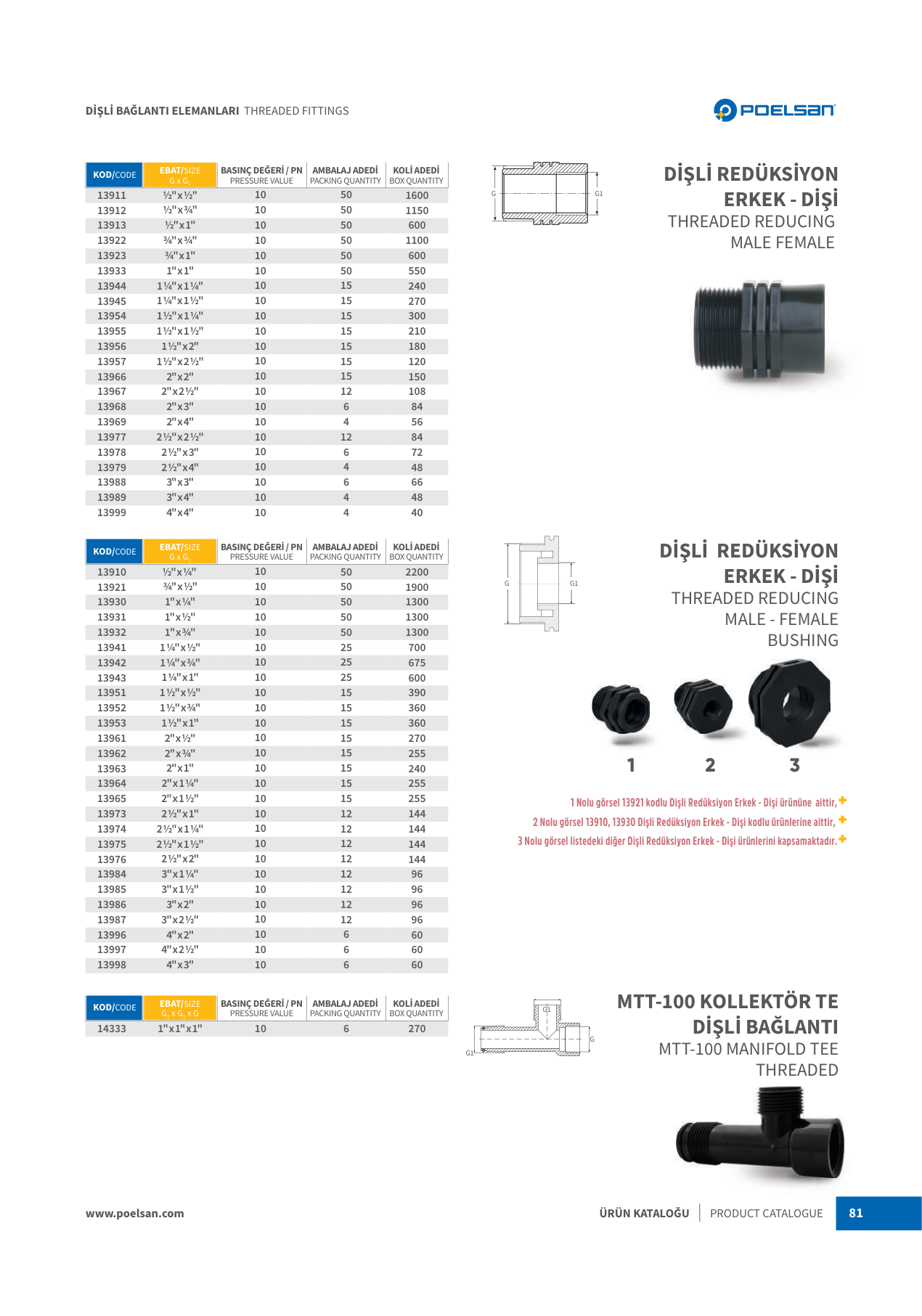

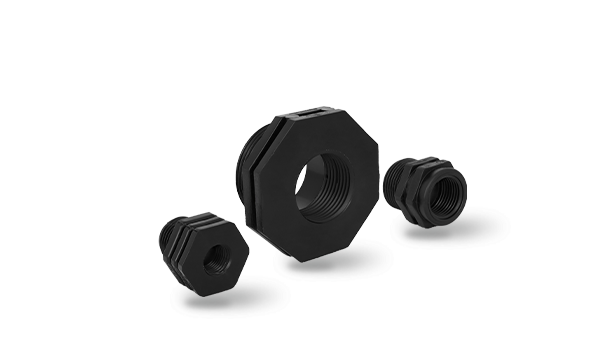

Threaded reducer in bushing design (screw-in reducer) made of high-quality polypropylene: male thread on the outside, smaller female thread on the inside. BSP thread, UV-resistant, guaranteed pressure rating PN10. Note from the catalog: product photo 1 shows item 13921, photo 2 items 13910/13930, photo 3 the remaining items in this list. Use Teflon tape for sealing.
Features
- High-quality, impact-resistant polypropylene
- Bushing design (screw-in reducer)
- BSP thread
- Guaranteed pressure rating PN10
- Sealing with Teflon tape
Dimensions & item numbers
| Item no. | Size (G x G1) | Pressure rating (PN) | Packing unit | Box qty |
|---|---|---|---|---|
| 13910KLN 04050320 Buy in shop | ½" x ¼" | 10 | 50 | 2200 |
| 13921KLN 00040823 Buy in shop | ¾" x ½" | 10 | 50 | 1900 |
| 13930KLN 04050325 Buy in shop | 1" x ¼" | 10 | 50 | 1300 |
| 13931KLN 00040824 Buy in shop | 1" x ½" | 10 | 50 | 1300 |
| 13932KLN 00040825 Buy in shop | 1" x ¾" | 10 | 50 | 1300 |
| 13941KLN 00040826 Buy in shop | 1¼" x ½" | 10 | 25 | 700 |
| 13942KLN 00040827 Buy in shop | 1¼" x ¾" | 10 | 25 | 675 |
| 13943KLN 00040828 Buy in shop | 1¼" x 1" | 10 | 25 | 600 |
| 13951KLN 00040829 Buy in shop | 1½" x ½" | 10 | 15 | 390 |
| 13952KLN 00040830 Buy in shop | 1½" x ¾" | 10 | 15 | 360 |
| 13953KLN 00040831 Buy in shop | 1½" x 1" | 10 | 15 | 360 |
| 13961KLN 00040680 Buy in shop | 2" x ½" | 10 | 15 | 270 |
| 13962KLN 00040833 Buy in shop | 2" x ¾" | 10 | 15 | 255 |
| 13963KLN 00040834 Buy in shop | 2" x 1" | 10 | 15 | 240 |
| 13964KLN 00040835 Buy in shop | 2" x 1¼" | 10 | 15 | 255 |
| 13965KLN 00040836 Buy in shop | 2" x 1½" | 10 | 15 | 255 |
| 13973KLN 00040681 Buy in shop | 2½" x 1" | 10 | 12 | 144 |
| 13974KLN 00040837 Buy in shop | 2½" x 1¼" | 10 | 12 | 144 |
| 13975KLN 00040838 Buy in shop | 2½" x 1½" | 10 | 12 | 144 |
| 13976KLN 00040839 Buy in shop | 2½" x 2" | 10 | 12 | 144 |
| 13984KLN 00040841 Buy in shop | 3" x 1¼" | 10 | 12 | 96 |
| 13985KLN 00040842 Buy in shop | 3" x 1½" | 10 | 12 | 96 |
| 13986KLN 00040843 Buy in shop | 3" x 2" | 10 | 12 | 96 |
| 13987KLN 00040844 Buy in shop | 3" x 2½" | 10 | 12 | 96 |
| 13996KLN 00040845 Buy in shop | 4" x 2" | 10 | 6 | 60 |
| 13997KLN 00040682 Buy in shop | 4" x 2½" | 10 | 6 | 60 |
| 13998KLN 00040846 Buy in shop | 4" x 3" | 10 | 6 | 60 |
Additional information
| Material | PP |
|---|---|
| Druckstufe | PN10 |
| Anschlussart | Außengewinde, Innengewinde |
| Einsatzbereich | Bewässerung |
| Anschlussgröße | ¼"–4" |
| Gewindenorm | BSP |
| Bauform | Bushing / Einschraub-Reduzierung |
