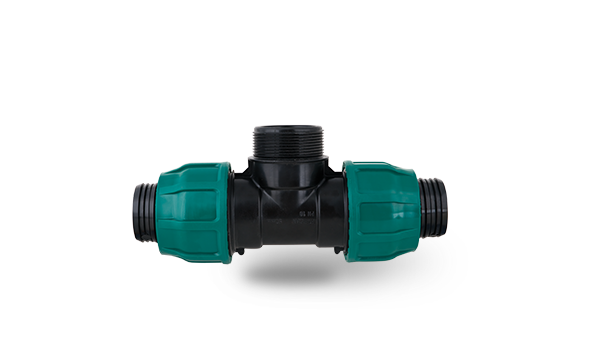

Rural Tee with Male Thread Outlet
Rural tee with two compression connections and male thread outlet, made of polypropylene, PN 10.
Description
Tee from the Rural special product series with two compression connections for inch-sized Rural pipes and a central outlet with male thread. Made of high-quality, impact-resistant polypropylene with a UV-resistant structure that prevents algae and bacteria formation. The rubber O-rings ensure tightness even under high pressure; the homogeneous, non-porous inner surface contains no substances that alter the taste or odor of the water. Do not use with metrically manufactured pipes; cut pipe ends straight. Guaranteed pressure rating: PN 10.
Features
- Made of high-quality, impact-resistant polypropylene
- UV-resistant, prevents algae and bacteria formation
- Rubber O-rings for tightness under high pressure
- Homogeneous, non-porous inner surface
- No substances that alter the taste or odor of the water
- Guaranteed pressure rating PN 10
- Only for inch-sized Rural pipes (not for metric pipes)
Dimensions & item numbers
| Item no. | Size (d x G x d) | Pressure rating (PN) | Packing unit | Box qty |
|---|---|---|---|---|
| 20611KLN 50314919 | 20 (3/4") x 1/2" x 20 (3/4") | 10 | 15 | 210 |
| 20612KLN 50314920 | 20 (3/4") x 3/4" x 20 (3/4") | 10 | 15 | 240 |
| 20621KLN 50314921 | 25 (1") x 1/2" x 25 (1") | 10 | 10 | 160 |
| 20622KLN 50314922 | 25 (1") x 3/4" x 25 (1") | 10 | 10 | 160 |
| 20623KLN 50314923 | 25 (1") x 1" x 25 (1") | 10 | 10 | 140 |
| 20624KLN 50314924 | 25 (1") x 1 1/4" x 25 (1") | 10 | 10 | 120 |
| 20632KLN 50314925 | 32 (1 1/4") x 3/4" x 32 (1 1/4") | 10 | 10 | 90 |
| 20633KLN 50314926 | 32 (1 1/4") x 1" x 32 (1 1/4") | 10 | 10 | 90 |
| 20634KLN 50314927 | 32 (1 1/4") x 1 1/4" x 32 (1 1/4") | 10 | 10 | 90 |
| 20643KLN 50314928 | 40 (1 1/2") x 1" x 40 (1 1/2") | 10 | 5 | 55 |
| 20644KLN 50314929 | 40 (1 1/2") x 1 1/4" x 40 (1 1/2") | 10 | 5 | 50 |
| 20645KLN 50314930 | 40 (1 1/2") x 1 1/2" x 40 (1 1/2") | 10 | 5 | 50 |
| 20653KLN 50314931 | 50 (2") x 1" x 50 (2") | 10 | 4 | 36 |
| 20654KLN 50314932 | 50 (2") x 1 1/4" x 50 (2") | 10 | 4 | 36 |
| 20655KLN 50314933 | 50 (2") x 1 1/2" x 50 (2") | 10 | 4 | 36 |
| 20656KLN 50314934 | 50 (2") x 2" x 50 (2") | 10 | 4 | 32 |
Additional information
| Material | Polypropylen (PP) |
|---|---|
| Druckstufe | PN10 |
| Dimension | 20 mm (3/4"), 25 mm (1"), 32 mm (1 1/4"), 40 mm (1 1/2"), 50 mm (2") |
| Anschlussart | Außengewinde, Klemmverbindung |
| Einsatzbereich | Bewässerung |
| Maßsystem | Zoll (britisches Maßsystem) |
| Dichtung | O-Ring aus Gummi |
