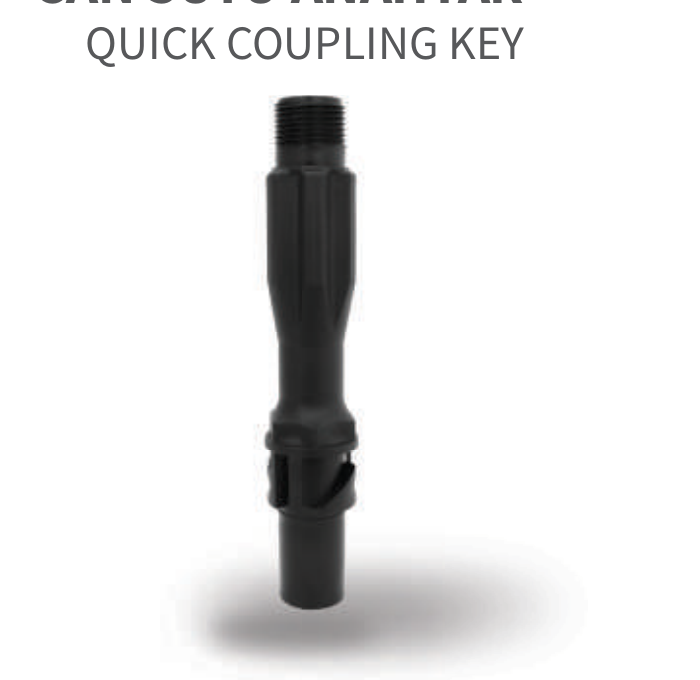

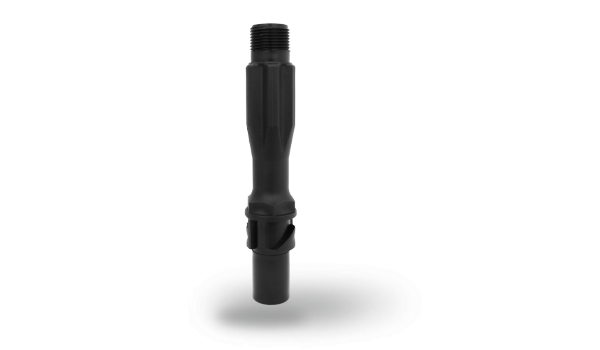

Quick Coupling Valve Key
¾” coupler key for the Poelsan quick coupling valve. UV-resistant, impact-resistant material, PN6.
Description
The Poelsan quick coupling valve key is used to draw water from the quick coupling valve (item CS322). It is inserted into the valve and opens it with a quarter turn. The hose connection should be made on the key before mounting it on the valve. The material is UV-resistant and impact-resistant; the thread dimensions comply with ISO 7-1.
Features
- Fits the Poelsan quick coupling valve (CS322)
- Easy opening and closing with a quarter turn
- UV-resistant, impact-resistant material
- Thread dimensions to ISO 7-1
- Guaranteed pressure: PN6
Dimensions & item numbers
| Item no. | Size (d) | PN | Packing unit | Box qty |
|---|---|---|---|---|
| CS222KLN 50310051 Buy in shop | ¾" | 6 | 5 | 120 |
Additional information
| Druckstufe | PN6 |
|---|---|
| Anschlussart | Außengewinde |
| Dimension | ¾" |
| Norm | ISO 7-1 |
| Einsatzbereich | Bewässerung |
| Material | UV-beständiger Kunststoff |
