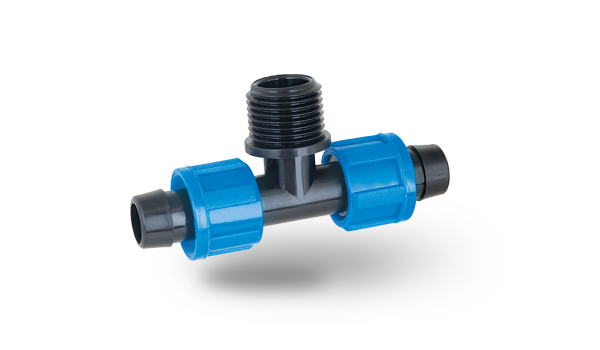

Dripline Tee with Nut and Male Thread
Tee with two compression connections and central male threaded outlet (½”–1″).
Description
Tee with two compression connections (nuts) and a central inch-size male threaded outlet for integrating threaded components into the dripline.
Features
- Made of high-quality, impact-resistant polypropylene (PP)
- For dripline pipes Ø16 mm and Ø20 mm (round PE drip irrigation pipe)
- Compression connection with nut – tool-free installation, can be undone again
- UV-opaque – prevents algae and bacteria growth inside
- Homogeneous, pore-free inner surfaces
- Taste- and odor-neutral, free of compounds harmful to water
Dimensions & item numbers
| Item no. | Size (d x G x d) | Packing unit (pcs) | Box qty (pcs) |
|---|---|---|---|
| 16421KLN 50314650 | 16 x ½" x 16 | 100 | 900 |
| 16422KLN 50314651 | 16 x ¾" x 16 | 100 | 800 |
| 16441KLN 50314652 | 20 x ½" x 20 | 100 | 600 |
| 16442KLN 50314653 | 20 x ¾" x 20 | 100 | 600 |
| 16443KLN 50314654 | 20 x 1" x 20 | 100 | 500 |
Additional information
| Material | PP |
|---|---|
| Einsatzbereich | Bewässerung |
| Norm | TS EN ISO 9261 |
| Anschlussart | Überwurfmutter (Klemmanschluss), Außengewinde |
| Anschlussgröße | 16 mm, 20 mm |
