Name: Compression Fitting Elbow with Male Thread – Green Series
Brand: Poelsan

Description

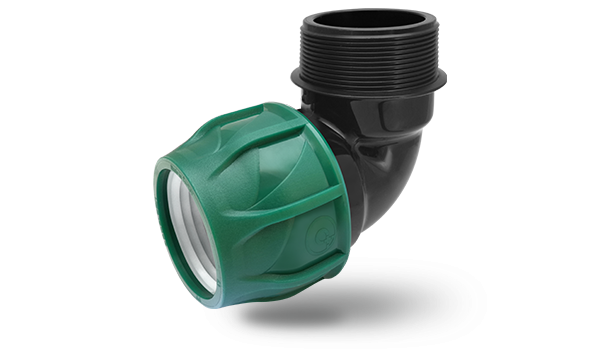

Elbow (90°) with male thread from the Poelsan Green Series. Connects a PE pipe by compression connection at a right angle to a male-threaded connection. Made of high-quality polypropylene, O-ring made of genuine rubber, UV-stabilized. Thread according to ISO 7-1, product according to ISO 17885 (TSE-certified). Guaranteed pressure rating: Ø20–Ø63 mm PN10, Ø75–Ø110 mm PN6.

Features

High-quality polypropylene (PP)
O-ring made of genuine rubber – tight even at high pressure
UV-stabilized for outdoor use
Thread according to ISO 7-1, product according to ISO 17885 (TSE)
Guaranteed pressure rating: Ø20–63 PN10, Ø75–110 PN6

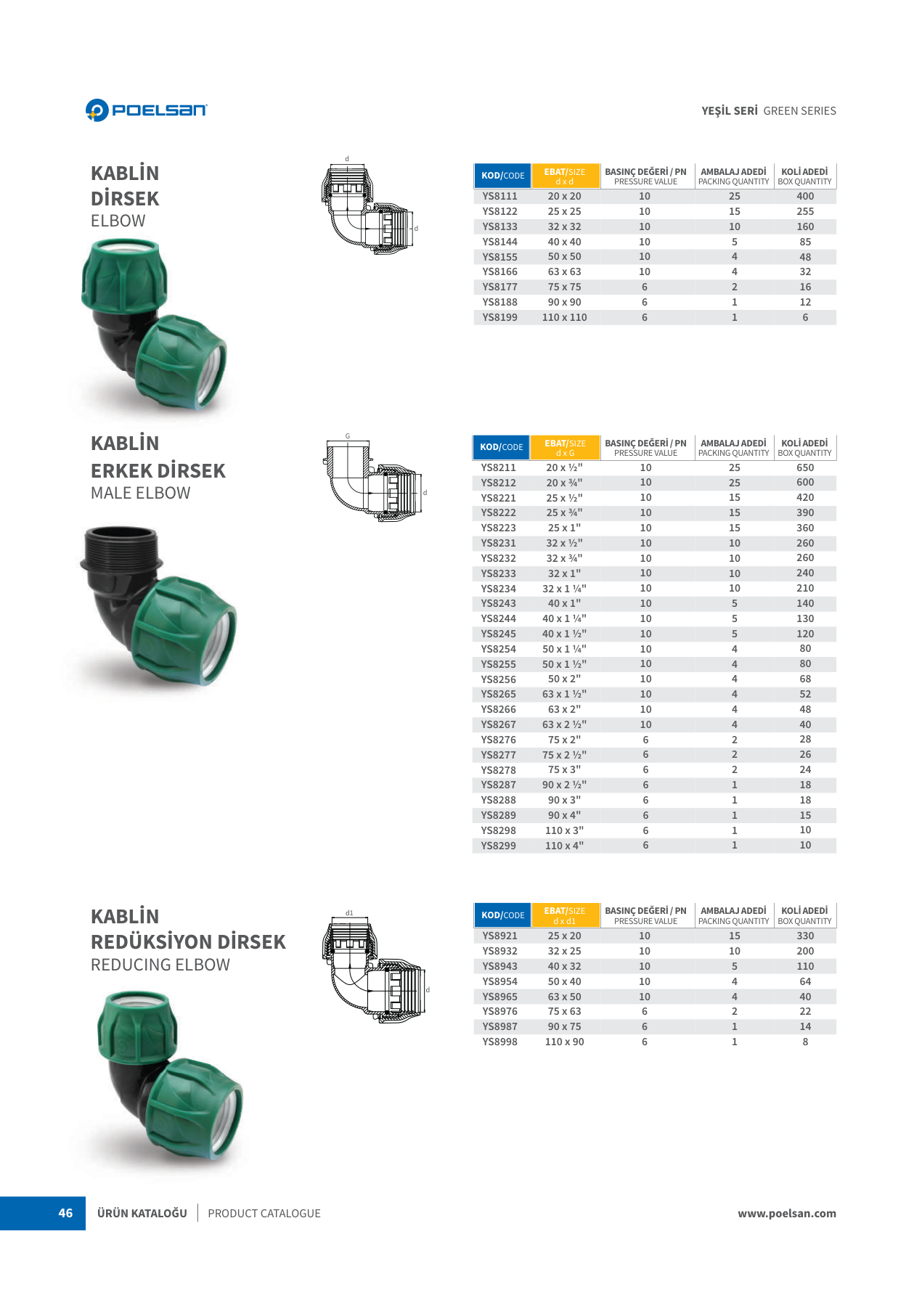

Dimensions & item numbers

Item no.	Size (d x G)	PN	Packing unit (pcs)	Box qty (pcs)
YS8211KLN 04044152	20 x ½"	10	25	650
YS8212KLN 04044153	20 x ¾"	10	25	600
YS8221KLN 04044154	25 x ½"	10	15	420
YS8222KLN 04044155	25 x ¾"	10	15	390
YS8223KLN 04044156	25 x 1"	10	15	360
YS8231KLN 04044157	32 x ½"	10	10	260
YS8232KLN 04044158	32 x ¾"	10	10	260
YS8233	32 x 1"	10	10	240
YS8234KLN 04044160	32 x 1¼"	10	10	210
YS8243KLN 04044161	40 x 1"	10	5	140
YS8244KLN 04044162	40 x 1¼"	10	5	130
YS8245KLN 04044163	40 x 1½"	10	5	120
YS8254KLN 04044164	50 x 1¼"	10	4	80
YS8255KLN 04044165	50 x 1½"	10	4	80
YS8256KLN 04044166	50 x 2"	10	4	68
YS8265KLN 04044167	63 x 1½"	10	4	52
YS8266KLN 04044168	63 x 2"	10	4	48
YS8267KLN 04044169	63 x 2½"	10	4	40
YS8276KLN 04050012	75 x 2"	6	2	28
YS8277KLN 04044170	75 x 2½"	6	2	26
YS8278KLN 04044171	75 x 3"	6	2	24
YS8287KLN 04050013	90 x 2½"	6	1	18
YS8288KLN 04044172	90 x 3"	6	1	18
YS8289KLN 04044173	90 x 4"	6	1	15
YS8298KLN 04050014	110 x 3"	6	1	10
YS8299KLN 04044174	110 x 4"	6	1	10

Additional information

Material	PP
Druckstufe	PN10, PN6
Anschlussart	Außengewinde, Klemmverbindung
Norm	ISO 17885, ISO 7-1
Dimension	110 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 75 mm, 90 mm
Anschlussgröße	½", ¾", 1", 1¼", 1½", 2", 2½", 3", 4"
